Jacketed Bag Filter

DOUBLE LAYER THERMOS BAG FILTER

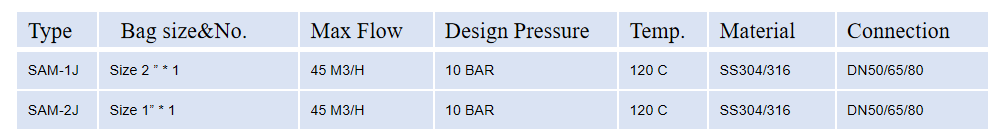

SAM-1J/2J

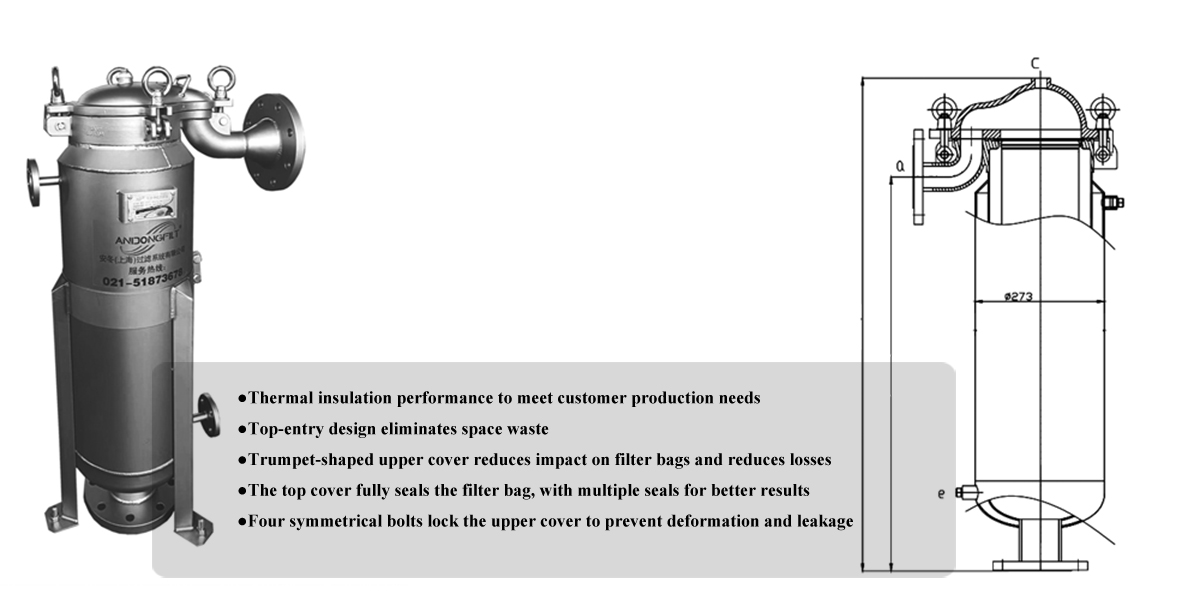

"Our Jacketed Bag Filter features a double-layer / two-wall construction with an outer jacket designed to circulate steam, hot water, or thermal oil. This design maintains a constant operating temperature during filtration, preventing the liquid from solidifying or crystallizing due to temperature drops—especially critical for high-viscosity fluids and cold environments.

Compared to standard bag filters, our design significantly improves flow rate, reduces clogging risks, and lowers pressure drop. It also helps maintain product quality by ensuring the filtrate meets the temperature requirements of downstream processes.

Our jacketed filter housings are available in both single-bag and multi-bag configurations, crafted from 304 or 316L stainless steel, with customizable jacket connections, pressure ratings, and insulation layers. Common applications include chemical processing, edible oil refining, pharmaceutical manufacturing, paint and coating production, and food & beverage processing.

Backed by rigorous quality testing and compliance with international standards, our jacketed bag filters deliver reliable performance, energy efficiency, and long service life."

l Good sealing effect, no side leakage

l Large effective filtration area and higher filtration efficiency

l Filter bag replacement is more convenient and quick, and the operating cost is lower

l Reasonable structure, more stable and reliable in filtration

l Adjustable installation and debugging to meet the space requirements of specific applications

Quick Q&A for Customer Conversations

Q: Why do I need a jacketed bag filter instead of a regular one?

A: If your liquid is viscous, prone to crystallization, or requires specific temperature for downstream processes, standard filters can cause flow restriction and downtime. Our two-layer design keeps temperature stable, ensuring smooth, consistent operation.

Q: What heating media can you use?

A: Steam, thermal oil, hot water, or electric heating—we customize based on your site's available utilities and required temperature range.

Q: What industries use this the most?

A: Chemical, edible oil refining, paints & coatings, petrochemical, pharmaceutical, and food & beverage industries.

Q: Can you customize the jacket pressure rating?

A: Yes, we design to your specific pressure and temperature requirements, with options up to high-pressure ratings upon request.
