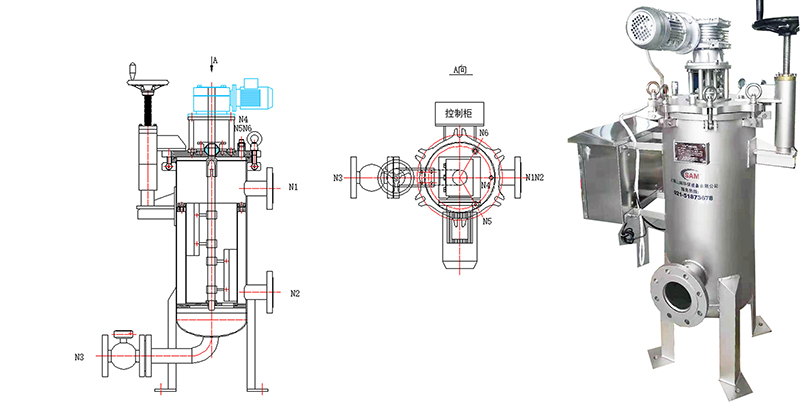

Automatic Scraper Selfcleaning filter

SAM - SCF

working principle

The filter medium enters the filter screen through the INLET, and the impurities larger than the filter screen gap are trapped on the filter surface side of the screen. When the pressure difference reaches the preset value, the control system will automatically start the reducer to drive the rotary hob to remove the dirt on the filter screen. And discharge the sewage automaticlly.

☆ Scraper Self-cleaning filter with hob structure.

☆Suitable for various water supply systems,

   process water systems and industrial cooling water systems,

   especially the 24-hour non-stop system,

   can filter out various mechanical impurities in the water to ensure the safety and reliability of the system running.

☆ABB Control System- everything will be automatically operated by the equipment,

   free of personnel maintenance, and it will clean the internal filter screen without remove it.

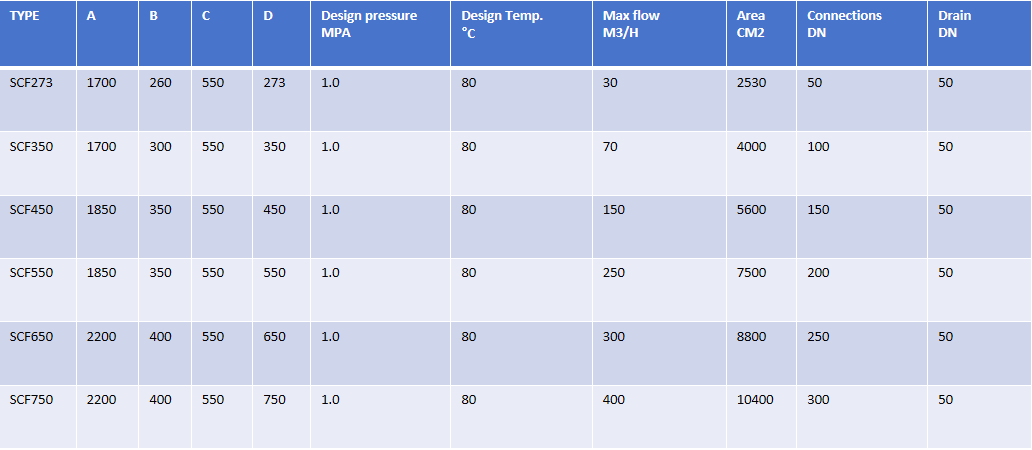

Selection parameters
